Audio Science ASI6722

$2,994.00

The ASI6722 is a professional PCI-Express sound card designed for use in radio broadcast automation. Providing 6 play streams that are mixed to 2 balanced stereo analog and digital outputs and 4 record streams fed from 2 balanced stereo analog and digital inputs.

Category:

Description

The ASI6722 is a professional PCI-Express sound card designed for use in radio broadcast automation. Providing 6 play streams that are mixed to 2 balanced stereo outputs and 4 record stream fed from 2 balanced stereo input, the ASI6722 features AudioScience’s unique “anything to anywhere” mixing and routing.

The ASI6722 provides a balanced analog inputs and outputs. The maximum analog input and output level is +24dBu.

A choice of uncompressed PCM, MPEG layer 2 and MP3 is available for both recording and playback. All compression is handled by an on-board floating point DSP, allowing the host computer to focus on other tasks.

ASI6722 functionality includes MRX multi-rate mixing technology which allows streams of different sample-rates and formats to be mixed digitally. TSX time scaling allows compression/expansion of any or all playback streams in real time with no change in pitch.

Additional information

Weight 6 lbs

Features

  • 6 streams of playback into 2 stereo outputs
  • 4 stereo streams of record from 2 stereo inputs
  • PCM, MPEG-L2 and MP3 formats with sample rates to 96kHz
  • MRX technology supports mixing of multiple formats and rates
  • TSX time scaling by up to +/-20%
  • Balanced stereo analog I/O with levels to +24dBu
  • 24bit ADC and DAC with 110dB SNR and 0.0015% THD+N
  • AES/EBU I/O with sample rate converters on all inputs
  • Dedicated AES/EBU and Word clock Sync input
  • Short length/half-height PCIe card format
  • Up to 4 cards in one system

NOTE: While the audio card supports Dolby AC2, BSI software does not currently support this format. Additionally, MP3 record is only supported in Simian 1.7 and above when used with the legacy audio engine.

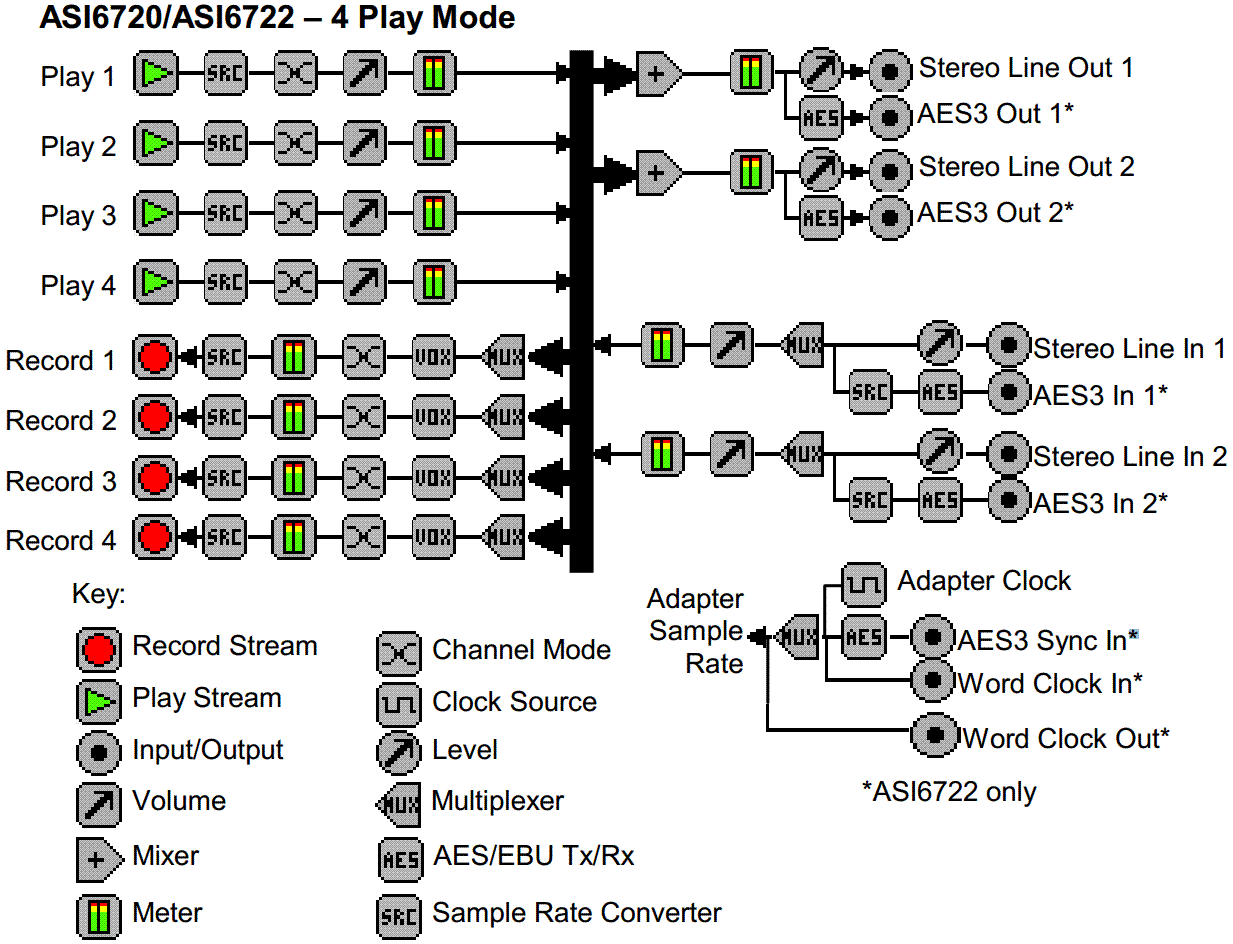

Block Diagram

Technical Data

ASI6722 Data Sheet

 Cable Options
