Description
Serial control 16 trigger Plus input/ 16 dry relay output device

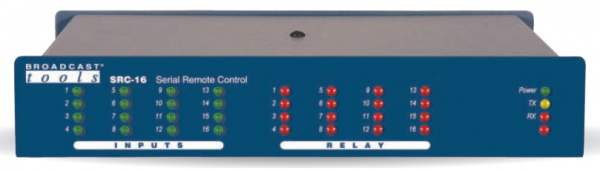

The Broadcast Tools® SRC-16 Plus is a computer interface to the real world. Connection through an RS-232 serial port the SRC-16 can notify your PC software program that any of 16 optically isolated inputs has been opened or closed and allows your software to control sixteen SPDT, 1-amp relays. Optional external USB capabilities may be added for those users who don’t have RS-232 com ports available. The SRC-16 Plus is supplied with LED indicators to display input and relay status. Three front panel LED’s display power, serial transmit and receive data. Plug-in euroblock screw terminals are provided for ease of wire installation/removal. The half-rack chassis allows two units to be rack mounted on the optional RA-1 rack shelf.
The SRC 16 is the ideal hardware to add to BSI Simian for users who need to respond to incoming trigger closures and/or send outgoing ‘dry relay’/contact closures.
Perfect for use with multi-session Simian! For those that need a trigger/relay device for each session, multiple SRC 16 Plus devices can be utilized by configuring an SRC 16 Plus for each session.
Technical Specifications
-
- Digital Inputs: 16-selectable 5-24 vdc optically isolated inputs (jumper selectable. Factory default: Dry). 50ms minimum duration.
- Relay Outputs: 16-SPDT, 1amp/30vdc relays. Jumper selectable either N.O. or N.C. (factory default: N.O.)
- RS-232 Serial Port: 2400, 4800, 9600, or 38400 baud, 8 data bits, no parity, 1 stop bit (factory default: 9600)
- Display: LED’s for inputs, relays, Tx & Rx data, and power
- Interfacing:
- Inputs – Plug-in euroblock screw terminals
- Relays – Plug-in euroblock screw terminals
- RS-232 Serial Port – Female DB-9. Data flow programmable
- RS422 Serial Port – Plug-in euroblock screw terminals
- Expansion port – Two RJ45 connectors
- Logic: Flash microprocessor/Non-volatile memory
- Power: 9VAC @ 1 amp or 500mA/120VAC 50-60Hz with supplied ‘Wall Wart’ power supply
(CE, 240 VAC 50-60Hz optional)
- Weight: 3.0 lbs.
- Mounting Option: RA-1 rack shelf for mounting up to two units in 1-RU. Filler panels included with RA-1.
- USB Option: Optional external Broadcast Tools Smart USB to Serial RS-232 adapter for systems with an insufficient number of com ports.
NOTE: Mulitple units can be cascaded for more audio inputs / outputs, but Simian is only able to accept incoming triggers from Unit ID 0.
